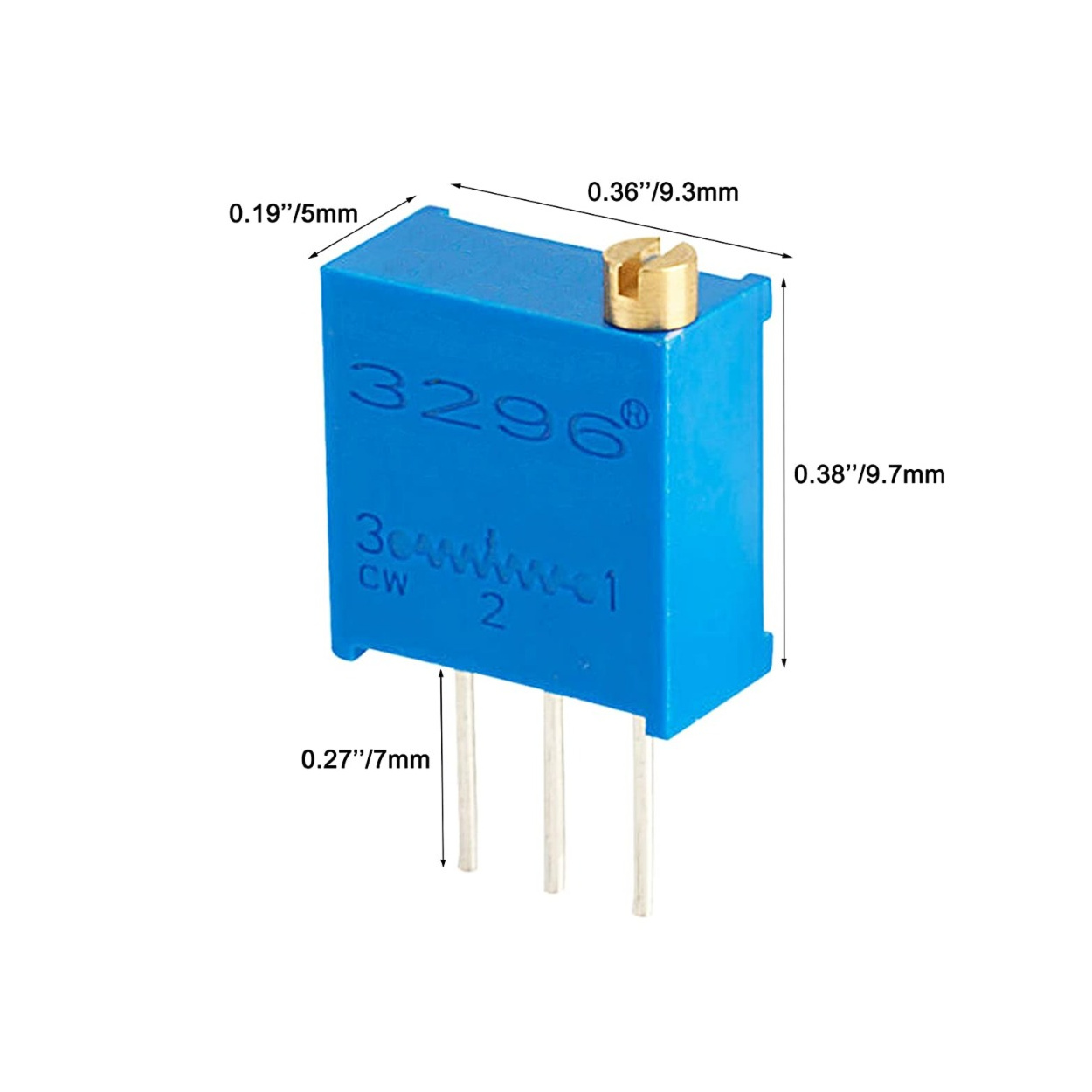

A general purpose board mountable preset also called by others names like potentiometers, trimpots, etc but is basically just a variable resistor.

Trimmer/Trimpots is a high accuracy variable resistor and pcb mountable with 3 terminal pins. The voltage between the terminal varies as the trimpot is rotated. The Variable resistors are used for variating voltage as per the need in a circuit. The outer two pins are connected to, and cetner pin outputs a variable volatge between 0v and Vcc as the rotary cermet is rotated. The potentiometer is easy to mount on a PCB and can be adjusted using a screwdriver. This potentiometer has a single turn, which can be used to preset a value.

• Product Category: Trimmer Resistors - Through Hole
•
• Series: 3296
• Resistance Tolerance : 10%
• Mounting Style: PCB Mount
• Adjustment: Top Slot
• Number of Turns: Multiturn
• Resistance: 100K Ohms
• Power Rating: 500 mW (1/2 W)
• Termination Style: PC Pin

Note:- Picture is only for reference. Brand keeps on changing as per the availablity of the stock. Call for more info.

Package Includes:

• 1 x 100K Ohm 3296 Series, Multiturn, Through Hole
