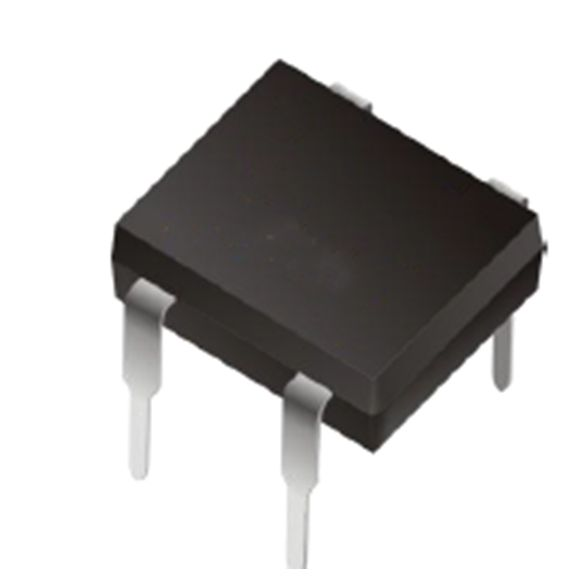

DB107 designed as a 1A Single-Phase Flat Bridge full-wave bridge rectifier with 1000V Peak Reverse Voltage. These are four terminals bridges, in which the anode and cathode labeled over the layer. They offer forward currents in the range of 1A.  DB107 Bridge Rectifier is a highly reliable, with low-cost construction technique utilizing the molded plastic technique. Moreover, it features low revere leakage current, low power loss with high efficiency. And also the electric Current permitted during both positive and negative half cycles of the input AC signal. This rectifier offers a wide range of applications in Rectifier current, industrial automatic control, digital-controlled machine and remte control system. AC to DC full bridge rectifier.

We can define bridge rectifiers as a type of full-wave rectifier that uses four or more during a bridge configuration. It efficiently convert alternating (AC) current to an immediate (DC) current. A bridge rectifier provides full-wave rectification from a two-wire AC input, leading to lower cost and weight as compared to a rectifier with a 3-wire input from a transformer with a center-tapped secondary coil . Meanwhile, Flat bridge rectifiers widely wont to perform voltage, switch controlling and other electronic functions. In the figure below, the current flow during positive and negative half cycle is given in red and blue color respectively

Features
Ideal for PCB
Compatible with any mounting type
The polarity symbol shown on IC’
Peak Surge overload rating – 40A
Simple and compact structure
Glass passivated device

Specification
Maximum recurrent peak reverse voltage: 1000V
Maximum RMS input voltage: 700V
Maximum DC blocking voltage: 1000V
Maximum rectified output current: 1A
Typical thermal resistance: 40K/W
Operating temperature: -55℃ t
