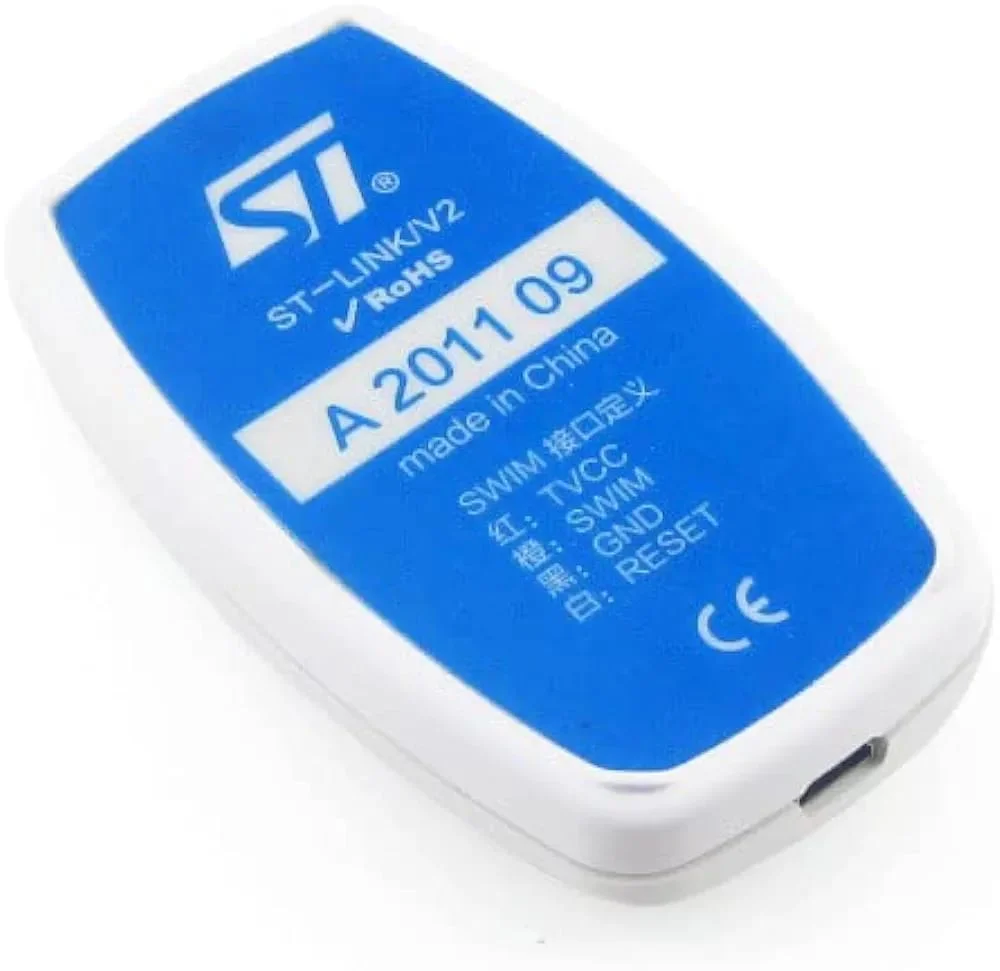

ST-LINK/V2 is an in-circuit debugger and programmer for the STM8 and STM32 microcontroller families. The single wire interface module (SWIM) and JTAG/serial wire debugging (SWD) interfaces are used to communicate with any STM8 or STM32 microcontroller located on an application board.

STM8 applications use the USB full-speed interface to communicate with ST Visual Develop ST Visual Program oftware. STM32 applications use the USB full-speed interface to communicate with Atollic, IAR, Keil, or TASKING integrated development environments.

Features :

1. 5V power supplied by a USB connector
2. USB 2.0 full-speed compatible interface
3. USB standard A to mini B cable
4. 1.65V to 5.5V application voltage supported on the SWIM interface
5. SWIM low-speed and high-speed modes supported
6. 1.65V to 3.6V application voltage supported on the JTAG/SWD interface and 5V tolerant inputs
7. Direct firmware update feature supported
8. Status LED which blinks during communication with the PC

9. Package Includes:-

   • ST-LINK V2 Emulator
   • Mini USB T-plug cable
   • FRC cable with 20-pin connector
   • Dual Female connectors
