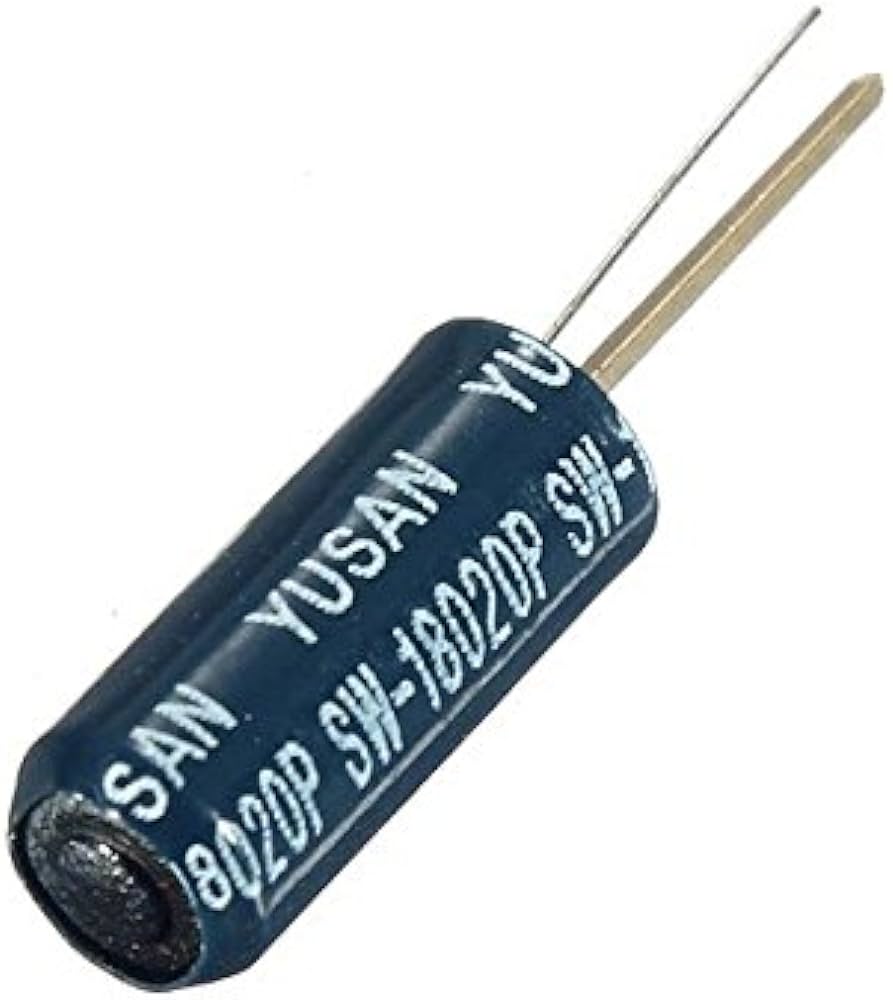

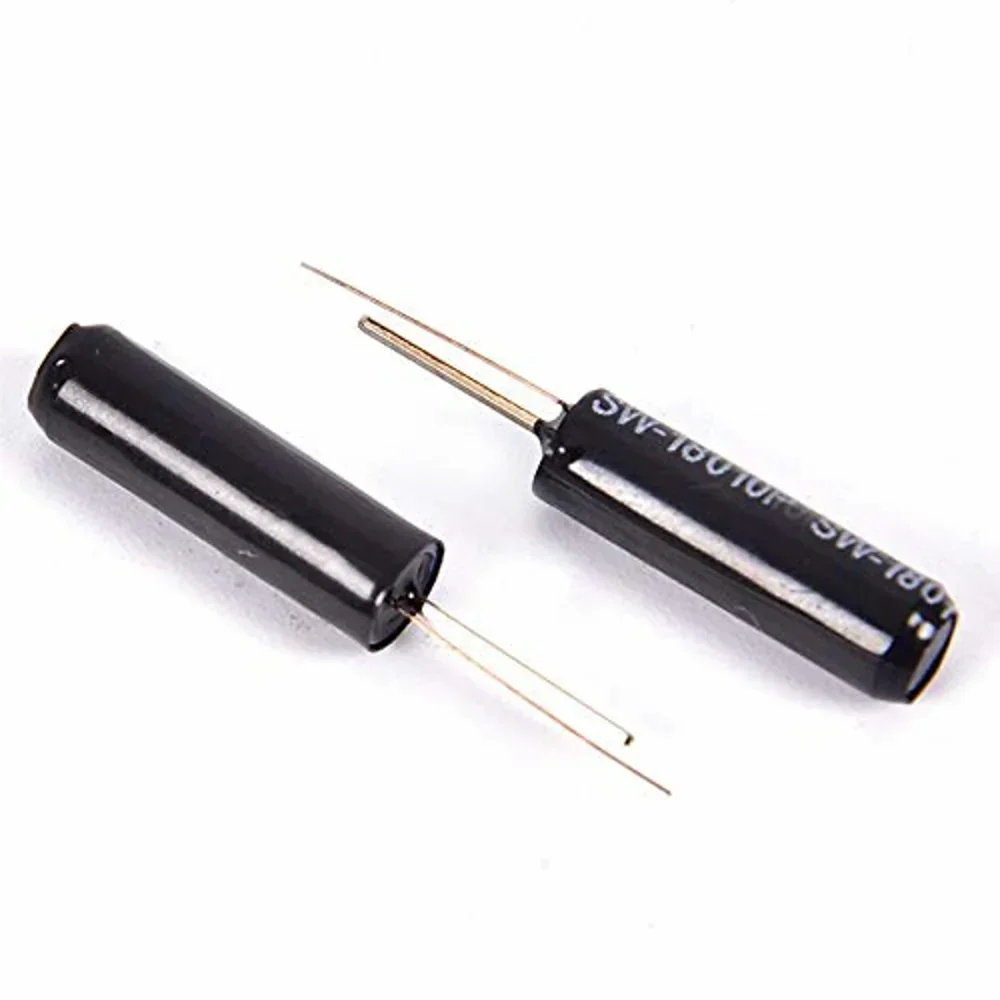

SW-18020P Vibration Sensor is a really simple vibration switch, it is used commonly in electronics toys, alarms, domestic appliances, electronics devices, and smart home systems. SW-18020 series is spring type, Non-direction vibration-induced trigger switch, any angle can be the trigger.

SW-18020P Vibration Sensor - General Specifications

• SW-18020P vibration sensor
• Simple vibration switch
• Non-direction
• Electronics, toys, alarm systems

SW-18020P Vibration Sensor - Technical Specifications

• Operating Voltage: less than12V
• Operating Current: <20mA
• Conductive Time: about 2ms
• Closed Resistance: <10Ω
• Open Resistance: >10MΩ
• Operating Temperature Range: -40 to 80’C
• Operating Lifespan: above 200,000 cycles
• Dimensions: 4.5mm diameter, 10mm high
