Description

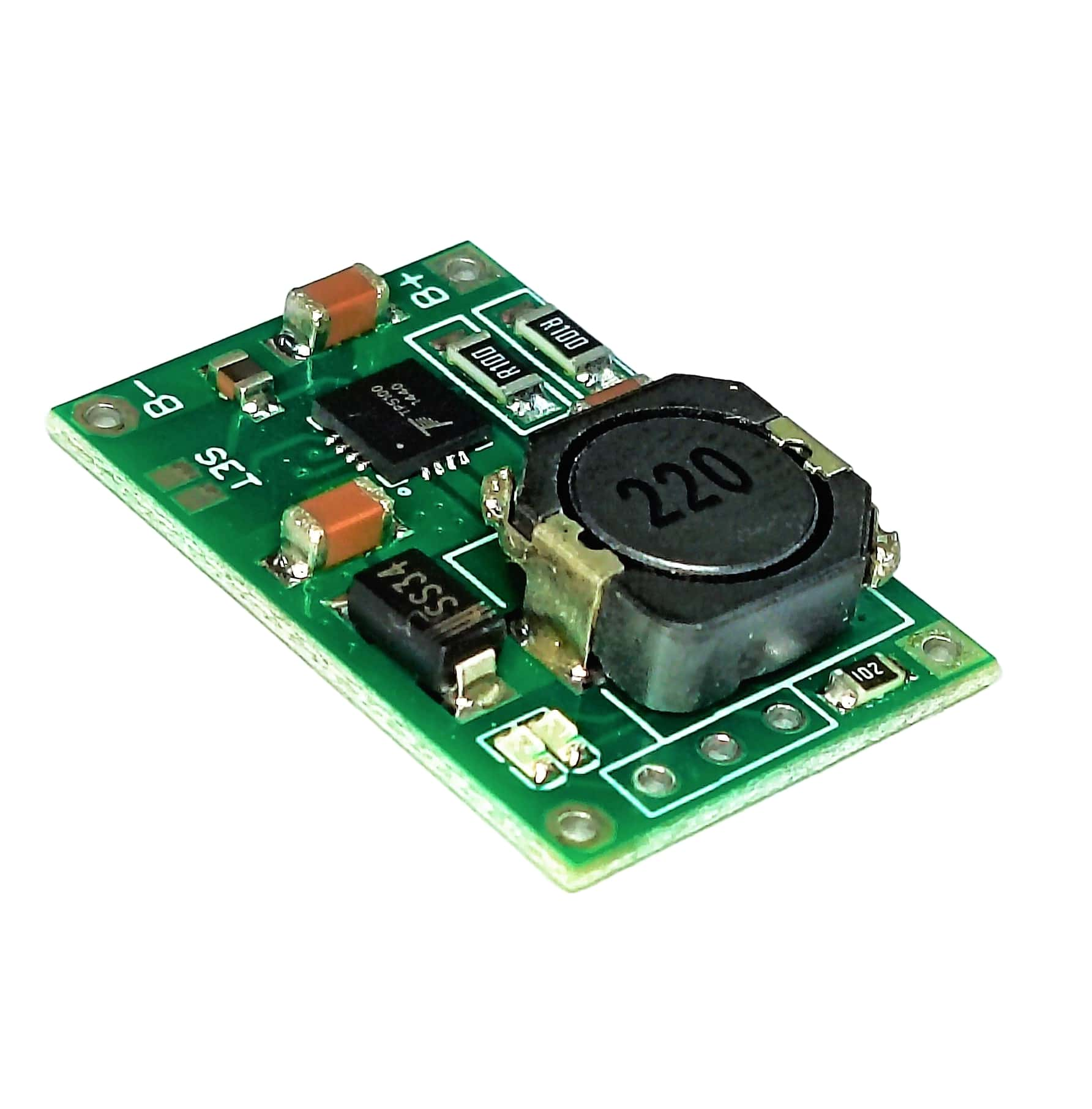

TP5100 4.2v 8.4v Single Double Lithium Battery Charge Management Lion Battery Compatible 2A Charging Board is a double switch buck 8.4V, single cell 4. 2V lithium battery charge management chip. Its ultra-compact QFN16 package and simple external circuit, making TP5100 ideal for portable equipment so large current charging management applications.
TP5100 has 5V-15V wide input voltage, dual battery trickle charge into pre-charge, constant current, constant voltage three-phases, pre-charge current trickle charge current through an external resistor adjustment, the maximum charge current up to 2A.
Features:
- Input voltage: 5-10VV DC power supply.
- Charge status: full and unloaded blue lights, charging red.
-
Double 8.4v / 4.2v lithium rechargeable single .
-
Programmable charge current. 0. 1A-2A .
-
Programmable steady precharge current 10% -100%.
-
Wide operating voltage, maximum reach 10V.
-
Red and green LED charge status indicator.
-
Chip temperature protection, overcurrent protection, under-voltage protection.
Package Includes:
1 x TP5100 4.2v 8.4v Single Double Lithium Battery Charging Board.
