The ST7735 TFT display is a 1.8″ display with a resolution of 128×160 pixels and can display a wide range of colors ( full 18-bit color, 262,144 shades!). The display uses the SPI protocol for communication and has its own pixel-addressable frame buffer which means it can be used with all kinds of microcontroller and you only need 4 i/o pins. To complement the display, it also comes with an SD card slot on which colored bitmaps can be loaded and easily displayed on the screen. The ST7735 is a single-chip controller/driver for 262K-color, graphic type TFT-LCD. It consists of 396 source line and 162 gate line driving circuits. This chip is capable of connecting directly to an external microprocessor, and accepts Serial Peripheral Interface (SPI), 8-bit/9-bit/16-bit/18-bit parallel interface. Display data can be stored in the on-chip display data RAM of 132 x 162 x 18 bits. It can perform display data RAM read/write operation with no external operation clock to minimize power consumption. In addition, because of the integrated power supply circuits necessary to drive liquid crystal, it is possible to make a display system with fewer components.

Features:

• ST7735R Driver IC
• 4 or 5 wire SPI digital interface
• 5V compatible! Use with 3.3V or 5V logic, Onboard 3.3V @ 150mA LDO regulator
• Resolution: 128 x 160 Pixels
• Compact Design: Ideal for space-efficient applications
• Visual Area: 1.8″
• 2 white LED backlight, a transistor connected so you can PWM dim the backlight
• The LCD has a wide viewing angle, the contrast is also very suitable.

Features/Specs:

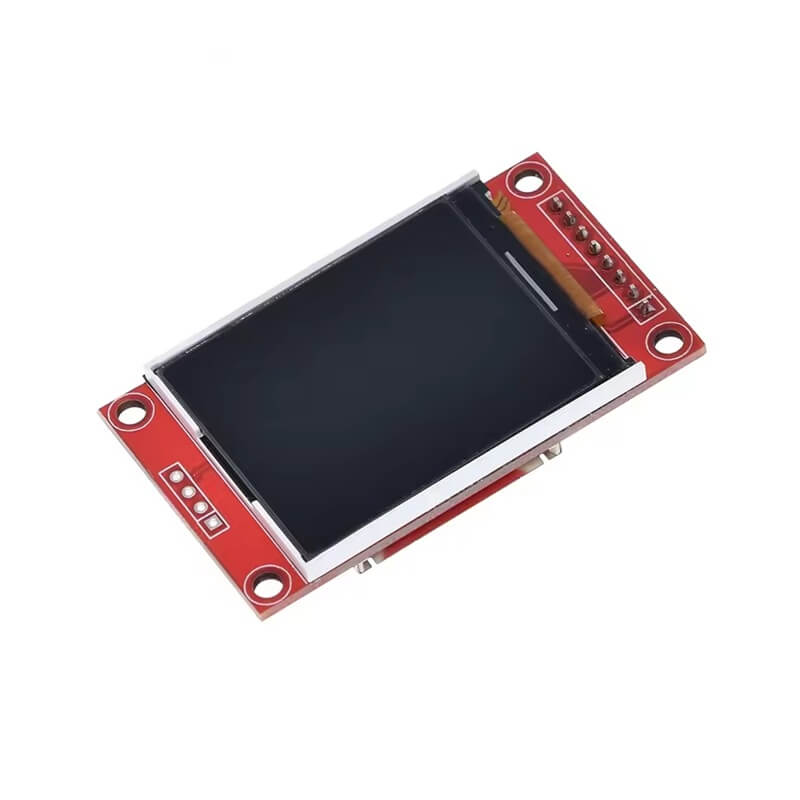

• Product Name: 1.8 Inch TFT LCD Module 128 x 160 with 4 IO
• Driver IC: ST7735R
• Pixel Color: RGB
• Input Voltage Range: 3.3 ~ 5V
