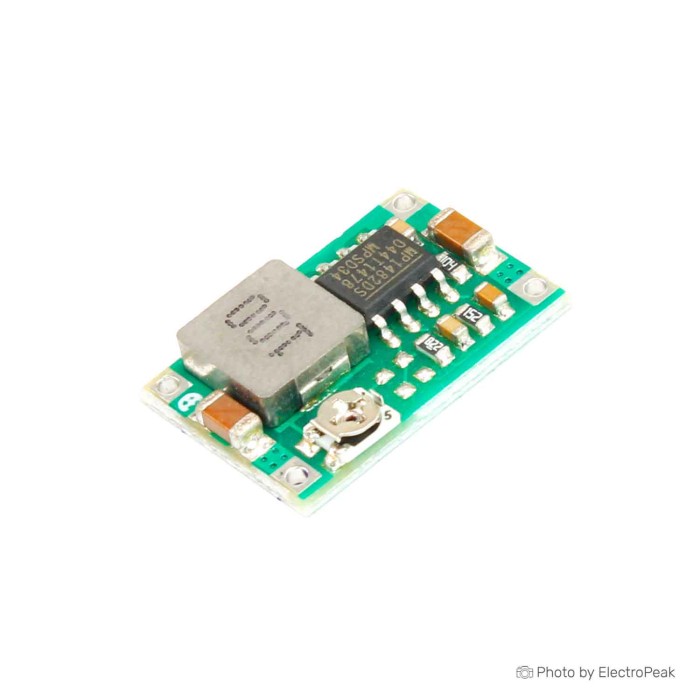

Mini 360 Step-Down Buck Converter Power Module that uses 4.75V-23V input and 1.0V to 17V output that is configurable using a simple onboard potentiometer. The continuous output current is 1.8A where 3A is the peak or surge current. It uses an integrally melded power inductor that is controlled by a 340kHz switching frequency. It is 95% efficient when driven by a 5V input source and set as 3.3V output at 200mA. This Module provides 30mV output ripple at no load with 0.5% load and 2.5% voltage regulation.

• Regulator IC  :  MPS MP2307DN

• Input Voltage Range :  4.75 – 23VDC

• Selectable Output Voltage   :  1.0 – 17VDC

• Rated Current:  1.8A Continuous and 3A Peak Current

• Maximum conversion efficiency:    95% (5Vin, 3.3Vout ~200mA output)

• Switching Frequency: 340kHz

• No-load output Ripple:  30mV peak to peak

• Load Regulation: 0.5%

• Voltage Regulation   :  2.5%

• Operational Temperature Range:   -40 to +85°C
