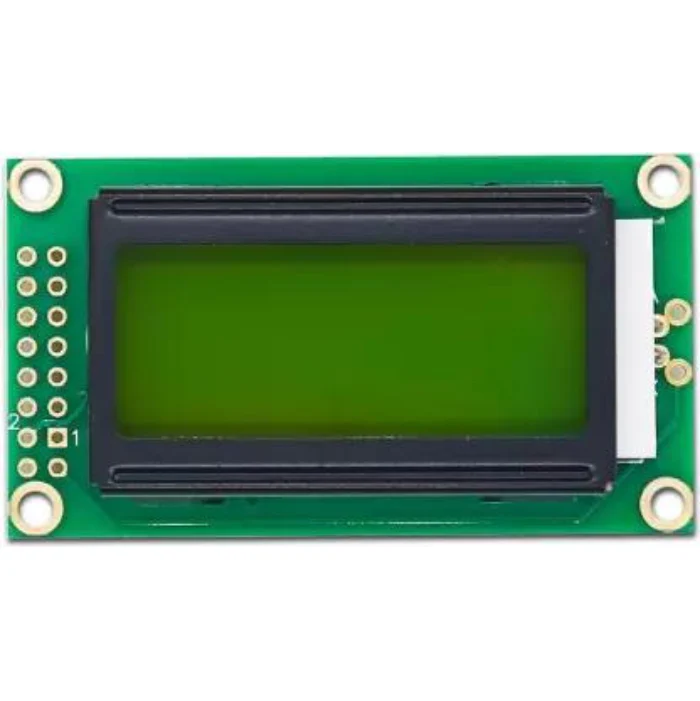

The LCD 8×2 Parallel LCD Display is an excellent solution for adding compact visual output to projects, especially when limited display space is required. This JHD 8×2 Character LCD Display features a yellow backlight and provides a cost-effective way to incorporate an 8-character by 2-line black text display into your project. With high contrast black text on a yellow background, it ensures clear readability. Ideal for displaying simple text or numerical values from sensors like temperature or pressure, it is also perfect for showing system cycles or basic messages. Designed for easy interfacing with Arduino and other microcontrollers, this display is a versatile addition to any compact project.

Features:

Display Size: 8 characters wide, 2 rows, providing a compact yet functional layout.

High Contrast: Black text on a yellow background ensures excellent readability.

Integrated Backlight: Single LED backlight included, adjustable with a resistor or PWM for customizable brightness.

Minimal Pin Usage: Fully controllable using only 6 digital lines, compatible with both analog and digital pins.

Technical Details:

• Model Type: JHD LCD
• Display: 8×2 Character
• Backlight Color: Yellow
• VA: 37.8×16
• Controller: SPLC780D
• Character: 2.96×5.56
• Driver: 1 to 16
• LCD: STN Yellow Green
• Length (mm): 58
• Width (mm): 32
• Height (mm): 10
• Weight (g): 23
