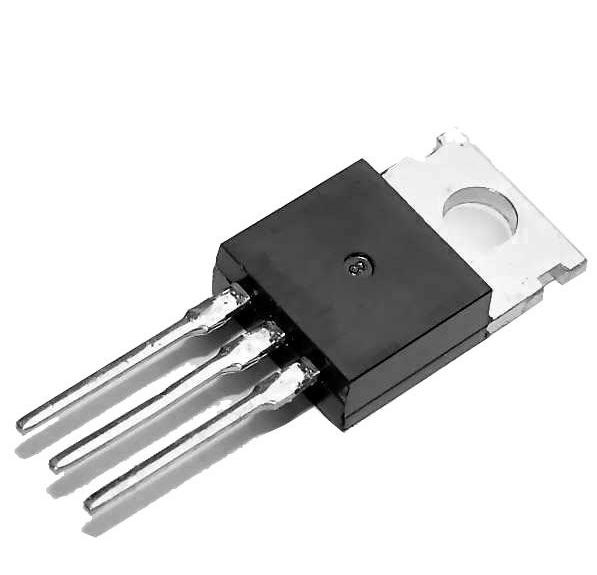

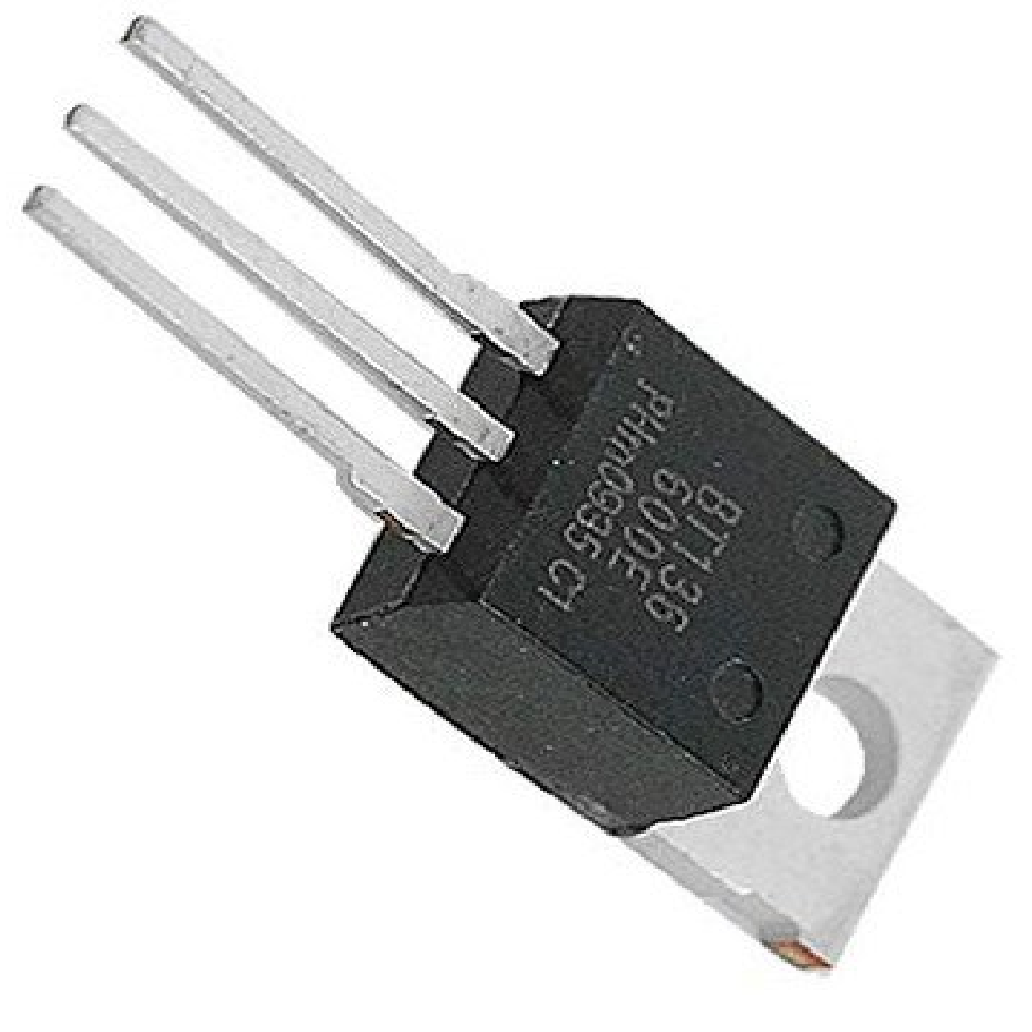

The BT136 is TRIAC with 4 A maximum terminal current. The gate threshold voltage of the BT136 is also very less so can be driven by digital circuits.

Since TRIACs are bi-directional switching devices they are commonly used for switching AC applications. To switch off control of an AC load that consumes less than 6 A with a digital device like a microcontroller or microprocessor then BT136 is the best choice.

Pin Configuration:

Main Terminal 1 (Pin 1) Connected to Phase or neutral of AC mains

Main Terminal 2 (Pin 2) Connected to Phase or neutral of AC mains

Gate (Pin 3) Used to trigger the SCR.

Features:-

• It has a highly sensitive gate
• It is suitable for uses in mains appliance control
• BT136 is a 4 amp which can be used as like switch for your home electric appliance which is 220 V operated We can use it to control the switch of your fan, led light

Specifications:-

• Type : Triac
• Non Repetitive On-State Current : 27 A
• Rated Repetitive Off-State Voltage VDRM : 600 V
• Off-State Leakage Current @ VDRM IDRM : 100 uA
• On-State Voltage : 1.7 V
• Package : TO-220-3

Package Includes:-

1 x BT136 600V - 4A Triac
