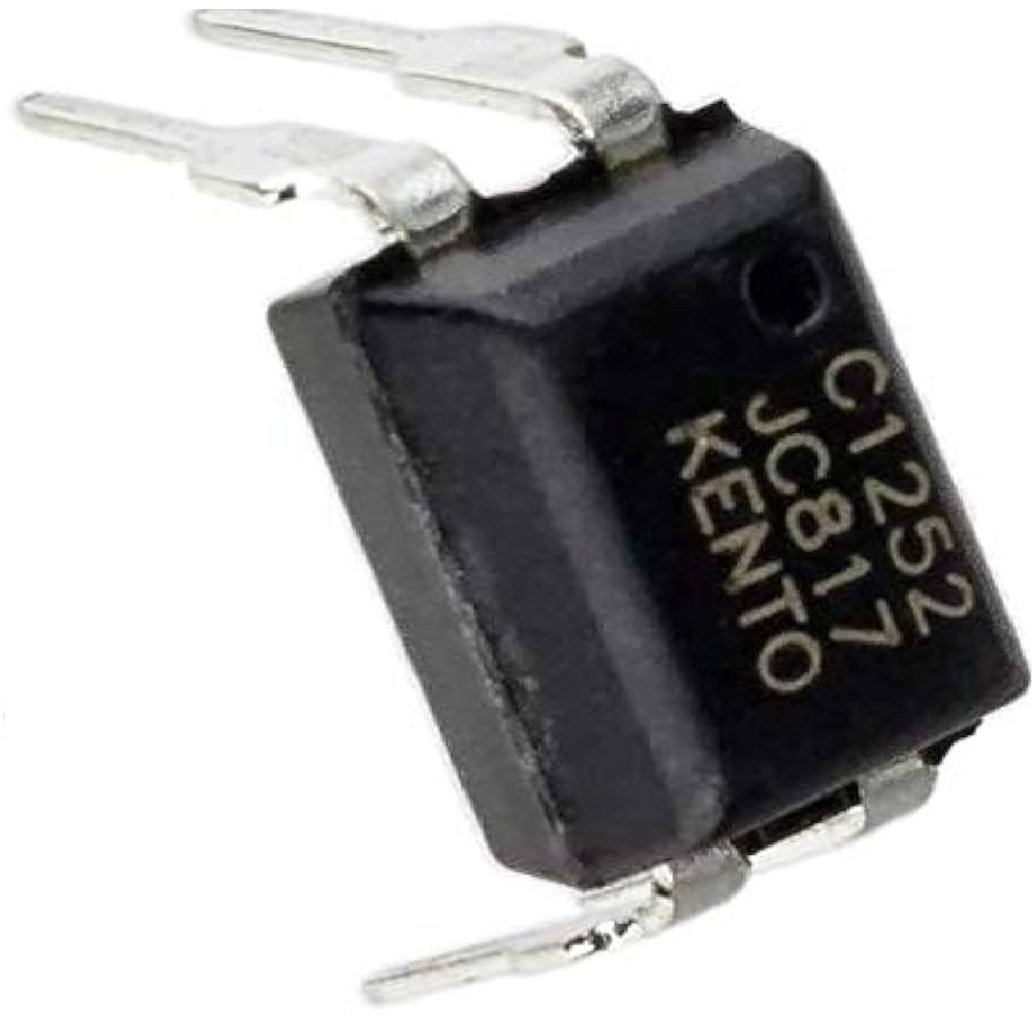

PC817 Photocoupler has a transistor that is controlled based on light (photon). So this IC basically has an IR (infrared) LED and a photo-transistor inside it. When the IR LED has powered the light from it falls on the transistor and it conducts.PC817X Series contains an IRED optically coupled to a phototransistor. It is packaged in a 4pin DIP, available in wide-lead spacing option and SMT gullwing lead-form option.Input-output isolation voltage(RMS) is 5.0kV. Collector-emitter voltage is 80V(*) and CTR is 50% to 600% at input current of 5mA. Features/Specs: Several CTR ranks available High isolation voltage between input and output Storage Temperature Range: -55°C to +125°C Ambient Operating Temperature Range: -30°C to +100°C
