Gps Neo 8m For Flight Controllers

GPS Neo 8m For Flight Controllers

Brand: | Made in: China

Offer Price

Rs 2129

MRP

Rs 2999

29% Off

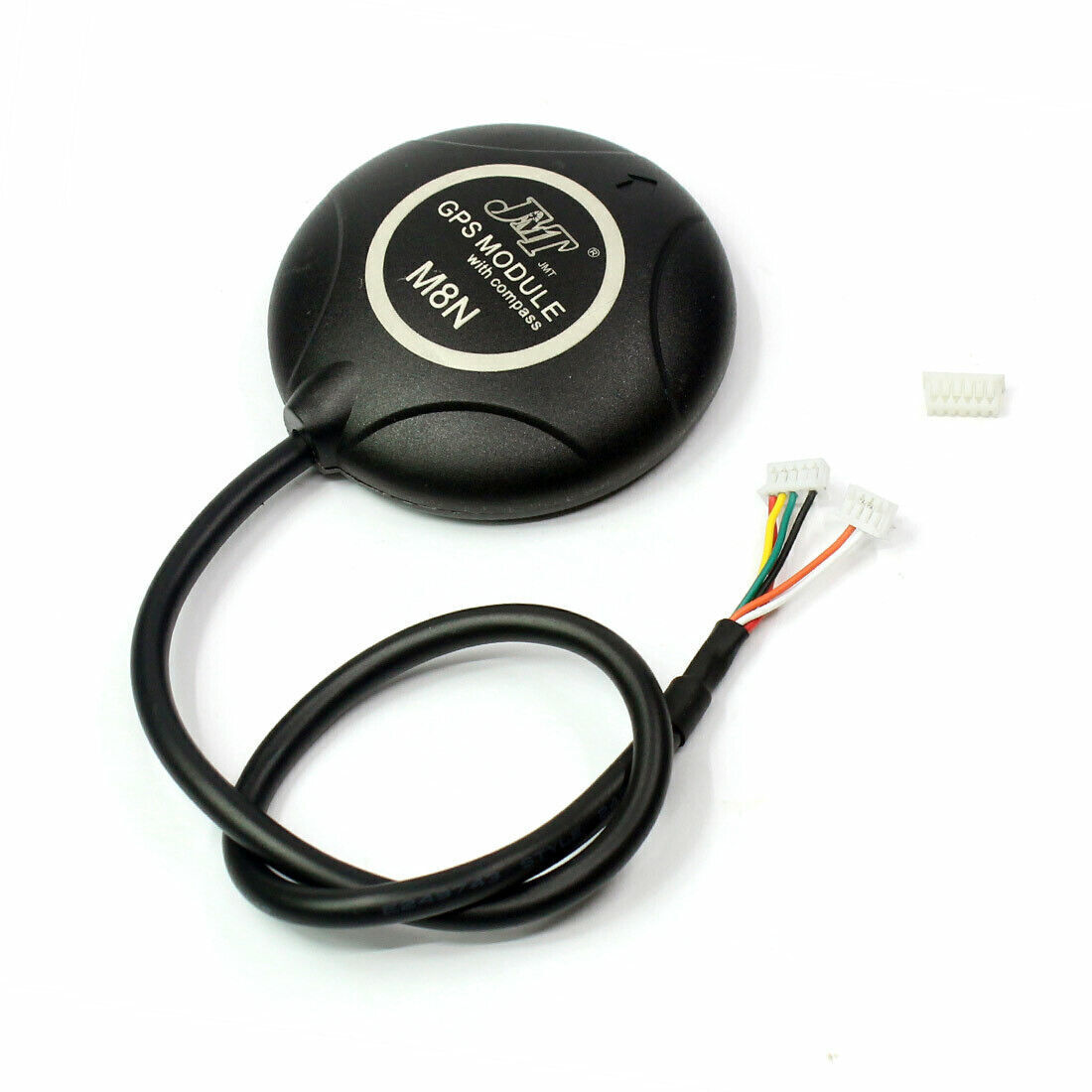

Ublox NEO-M8N GPS Module with Compass for APM with extra connector for Pixhawk FC is the new Ublox Neo-M8N GPS module that includes an HMC5883L digital compass. This module has a high level of sensitivity and features active circuitry for the ceramic patch antenna. It also comes enclosed in the plastic case to protect the module from the elements. This module outputs precise position updates at 10Hz and also has a rechargeable backup battery for warm starts. The Ublox NEO-M8N is configured to run at a baud rate of 38400 and can be used with Pixhawk and APM

Buy Now

Whatsapp for Bulk Order

SKU: ENG-GPS-NEO8M
Availability:5 In Stock

Description

The NEO-M8N provides the best performance and easiest RF integration of all the NEO-M8 configurations. The NEO form factor allows easy migration from previous NEO generations. Sophisticated RF architecture and interference suppression ensure maximum performance even in GNSS-hostile environments. NEO-M8 combines a high level of robustness and integration capability with flexible connectivity options. The future-proof NEO-M8N includes an internal Flash that allows simple firmware upgrades for supporting additional GNSS systems. Ublox NEO-M8N GPS Module for APM APM2.52 APM Flight Controller with Case and GPS Antenna Mount to protect the GPS preventing electromagnetic interference. A new generation Ublox GPS NEO-M8N GPS Module, with low power consumption and high precision, the ultimate accuracy is 0.6 meters, actually almost 0.9 meters, greater than the previous generation NEO-7N 1.4-1.6 meters accuracy. Support GPS/QZSS L1 C/A, GLONASS L10F, BeiDou B1 protocol, and mode or more. The NEO-M8N and ceramic antenna make this a very accurate receiver, with fast locks & lots of satellites, and the stand is very sturdy to protect the GPS preventing electromagnetic interference.

Features:

GPS/QZSS L1 C/A, GLONASS L10F, BeiDou B1
SBAS L1 C/A: WAAS, EGNOS, MSAS
Galileo-ready E1B/C (NEO-M8N)
Onboard Compass
Assistance AssistNow GNSS Online
AssistNow GNSS Offline (up to 35 days)
AssistNow Autonomous (up to 6 days)
OMA SUPL & 3GPP compliant
Oscillator TCXO (NEO-M8N/Q)
RTC crystal Built-In
Noise figure On-chip LNA (NEO-M8M). Extra LNA for
Anti-jamming Active CW detection and removal. Extra
onboard SAW bandpass filter NEO-M8.
