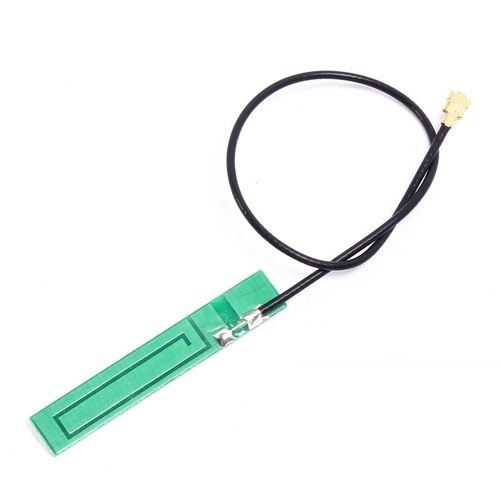

PCB 2.5dB Antenna with IPX Connector Cable for GSM/GPRS/3G/4G 900/1800/2100 Bands. This is a multi-band WiFi Bluetooth, GSM PCB Antenna with IPX Connector Cable. This microstrip antenna consists of a patch of metal foil of various shapes (a patch antenna) on the surface of a PCB, with a metal foil ground plane on the other side of the board. Specifications:- Frequency Range:824-960 / 1710-1990/2010-2170MHZ S.W.R. <= 2.0 VSWR: Less than or equal to 2.0 Antenna Gain 2.5dBi Impedance 50 Ohm Block Resistance: 50 Cable Type O.D. 1.13 mm Polarization: Omni direction Connector : IPX connector (Use U.FL as mating connector) Antenna PCB Dimensions: 35.4mm x 6.7mm x1.0mm IPX Connector Cable length : ~80mm – 140mm Weight: 1.0gm
