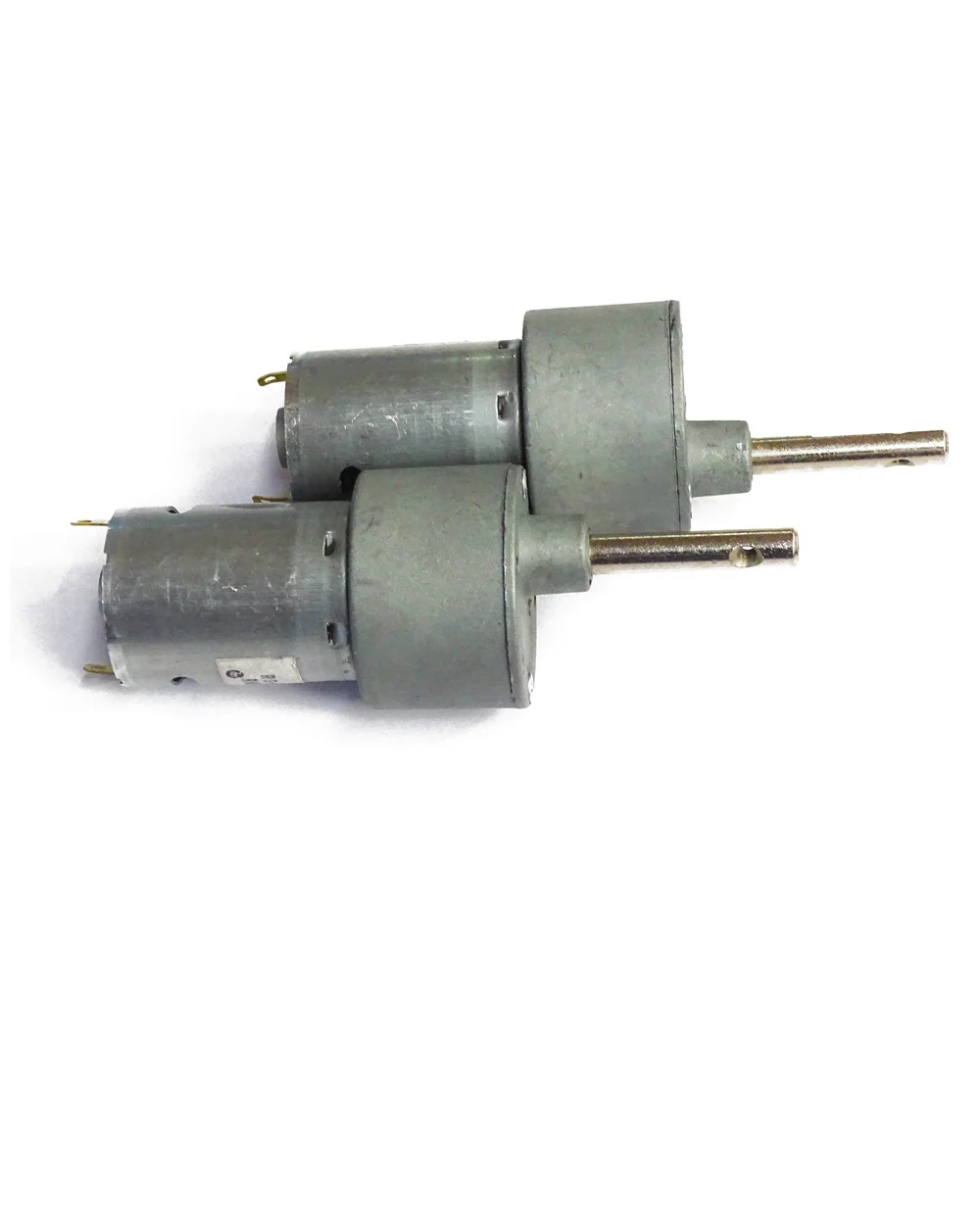

This Johnson Geared Motor from Robu.in provides torque which falls intermediate to the torques by center shaft gear motors and side shaft dc gear motors, at a reasonable cost .These “B Grade Johnson DC Motors” are in fame for their performance even at a low price compared to “Grade A Quality Johnson DC Motors”.(to know the difference between the two motors please read the Note below)It is a simple DC motor featuring metal gearbox for driving the shaft of the motor, so it is a mechanically commutated electric motor which is powered from DC supply. The Johnson Geared Motors are known for their compact size and massive torque-speed characteristic.

The Johnson Motor comes with side shaft also known as an off-centered shaft and six M3 mounting holes. The shaft of the motor equips metal bushes which makes these DC gear motors Shaft wear resistant. The shaft of the motor has a hole for better coupling.

Features:

1. The motor has a sturdy construction.
2. Shaft equips metal bushes for long life.
3. It comes with High-Quality gears.
4. The shaft has a hole for better coupling.

Specifications:

1. Rated Base Motor RPM: 18000
2. Gear Material: Metal
3. Rated Speed (RPM): 200
4. Operating Voltage (VDC): 6 ~ 18
5. Nominal Voltage (V): 12
6. Rated Torque(kg-cm): 3.9
7. Stall Torque(Kg-Cm): 15.6
8. No-Load Current (mA): 300
9. Load Current Max (mA): 900
10. Shaft Diameter (mm): 6
11. Shaft Length (mm): 30
12. Gearbox Diameter (mm): 37
