These connectors are designed to provide compatibility with industry-grade 50 ohm and 75-ohm cables for longer operational life with gold and nickel plating for environmental protections.

Features:

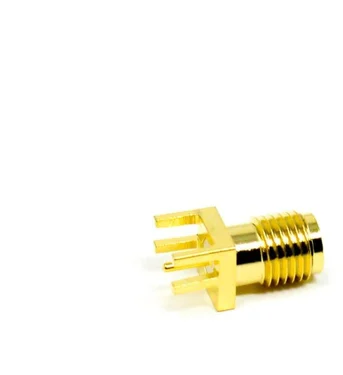

1. SMA Connector,Female,Straight,PCB Connector,Plate Edge Mount,Copper,Gold Plating;
2. Excellent electrical performance up to 18GHz with low reflection;
3. Thread type coupling mechanism ensure small loss and high security in compact design;

   Electrical Characteristics

   1. Impedance 50 ohm
   2. Frequency Range: 0~6 GHz
   3. VSWR: Straight type 1.3max / R/A type 1.5max
   4. Dielectric Withstanding Voltage: 1000 V rmsmin for RG142, RG405
   5. 750 V rms min. for RG316, RG402
   6. 500v rms min. for RG178
   7. Working Voltage:500 V rms max. for RG142, RG405
   8. 375 V rms max. for RG316, RG402
   9. 170 V rms max. for RG178
   10. Center Contact Resistance 6.0 m (Milliohms max.)
   11. Outer Contact Resistance 2.0 m (Milliohms max.)
   12. Insulation Resistance 5 x 10 m (Megohms min.)

       Package Includes:

       1 x SMA Female Straight Edge PCB Mount Connector
