Description
Connector Type: The Power Jack PCB features a female connector with a barrel-type design. The dimensions of the barrel connector are 5.5 x 2.1 mm, indicating the outer and inner diameters, respectively.
PCB Mounted: Designed for through-hole mounting on a printed circuit board (PCB). This means it is soldered onto the PCB for a secure and stable connection.
Polarity: The Power Jack PCB may have a specific polarity, indicating whether the center of the connector is positive or negative. This information is crucial for ensuring compatibility with the power supply.
Mounting Holes: The PCB-mounted power jack may have holes or pins for secure attachment to the PCB. These holes or pins facilitate the soldering process during assembly.
- Plug Type : 5.5 x 2.1 mm
- No. of Pin : 3
- Operating Temperature (℃) : -30 ~ +70
- Rated load : DC 30V / 1.0A
- Contact resistance: ≤0.03
- Insulation Resistance (MΩ) : ≥100
- Compatible with: 5.5 mm jack

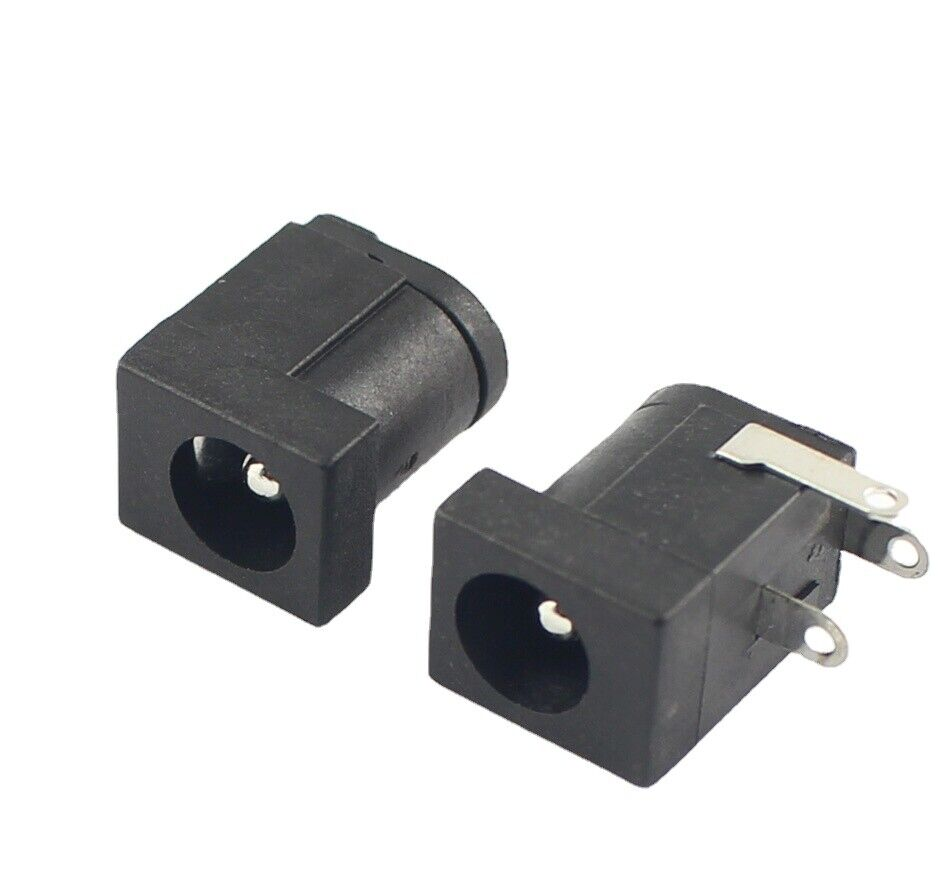

- 1 x Power Jack PCB Mounted Female Adaptor 5.5 x 2.1 mm
