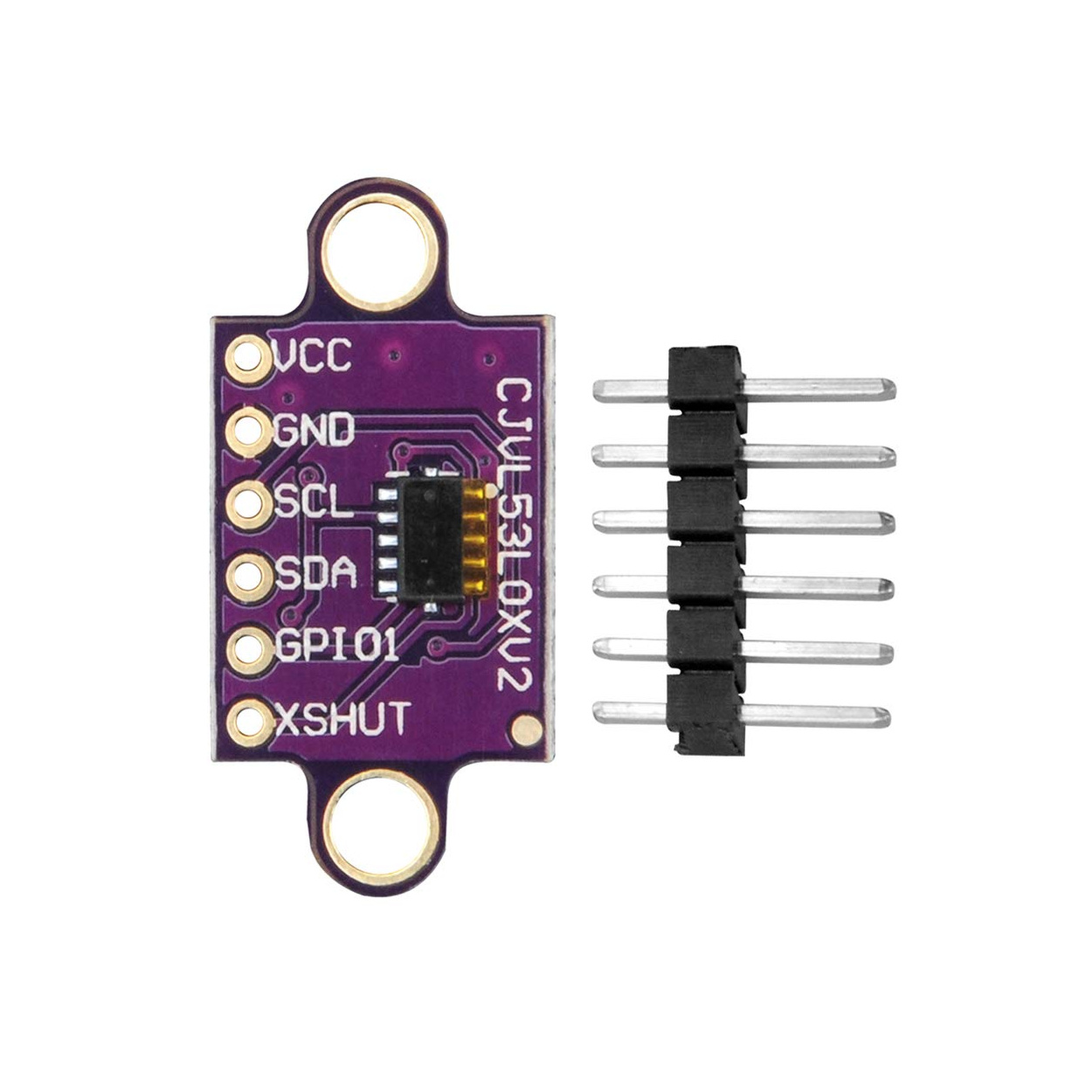

The VL53L0X TOF BASED LIDAR laser Distance Sensor is a Time-of-Flight (ToF) based Laser Distance Sensor, which is designed to measure the distance up to 2 meters with high accuracy and precision. It uses a VCSEL (Vertical Cavity Surface Emitting Laser) to emit a laser beam and then measures the time taken by the light to bounce back from the target to calculate the distance.

Features:

1. Range: The sensor can measure distances up to 2 meters with a resolution of 1 mm.
2. Accuracy: The sensor has an accuracy of +/- 3%, making it highly precise and reliable.
3. Speed: The sensor can take up to 60 measurements per second, which makes it ideal for real-time applications.
4. Interface: The sensor can communicate with the host microcontroller via I2C interface, which is easy to use and widely supported.
5. Low power consumption: The sensor consumes very little power, making it ideal for battery-powered applications.
6. Small size: The sensor is small in size and can easily fit in compact designs.
7. Ambient light immunity: The sensor is immune to ambient light, which means it can accurately measure distances even in brightly lit environments.

Applications :

• Distance Measurement: Provides accurate ranging for robotics and automation.
• Obstacle Detection: Helps robots and drones navigate safely.
• Gesture Recognition: Enables touchless control in smart devices.
• Industrial Automation: Used in machine positioning and object detection.
