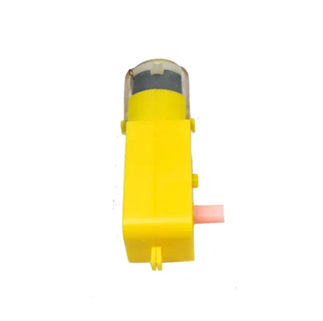

Single Shaft BO Motor - Straight (I Shape)

This is an 8mm Single Shaft BO DC Motor Straight "I" Shape. This BO Single Shaft Motor is a Straight motor that provides good torque and rpm at lower operating voltages, which is their main advantage. The combination of a small shaft and matching wheels results in an optimised design for your application or robot. Because of the mounting holes on the body and the light weight, it is suitable for in-circuit placement. This motor is compatible with 69mm Diameter Plastic Gear Motor Wheels.

• Low density, lightweight, low inertia.
• The capability to absorb shock and vibration as a result of elastic compliance.
• Ability to operate with minimum or no lubrication due to inherent lubricity.
• The relatively low coefficient of friction.

• Brand	VIGOR
  Type	BO Motor Straight
  Operating Voltage(VDC)	5~12 V
  No Load Current	40-180mA.
  Material	Plastic
  Shaft Diameter	5.2mm
  Shaft Length	8mm
  Rated Speed(After Reduction)	Varies
  Motor Length	70mm
  Width	22.3mm
  Depth with shaft	28mm
