It is a 10K Ohm Through Hole Resistor Network. The resistor array is a passive nine-terminal electrical component that serves as four 10K ohms resistances and one common ground.

• Maximum short time overload
• Minimum insulation resistance
• Dielectric withstanding voltage: No evidence of flashover, mechanical damage, arcing or insulation breakdown
• Maximum terminal strength
• Maximum resistance to soldering heat
• Resistor | Resistance | Through-hole
• • Resistance : 10K Ohms
  • Tolerance : ±5%
  • Maximum Working Voltage : 100(V)
  • Maximum Overload Voltage 150(V)
  • Mounting Type : Through Hole
  • Temperature Coefficient : ±200ppm/°C
  • Operating Temperature : -55°C ~ 155°C
  • Color : Black
  • Pins : 5
  • Resistors : 4

  Package Includes:-

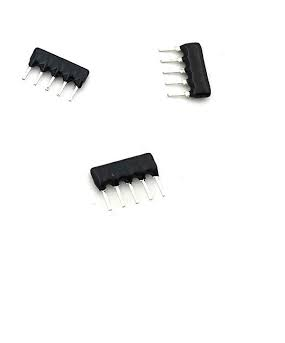

  1 x 10k ohm 5 Pin Resistor Network - SIP
