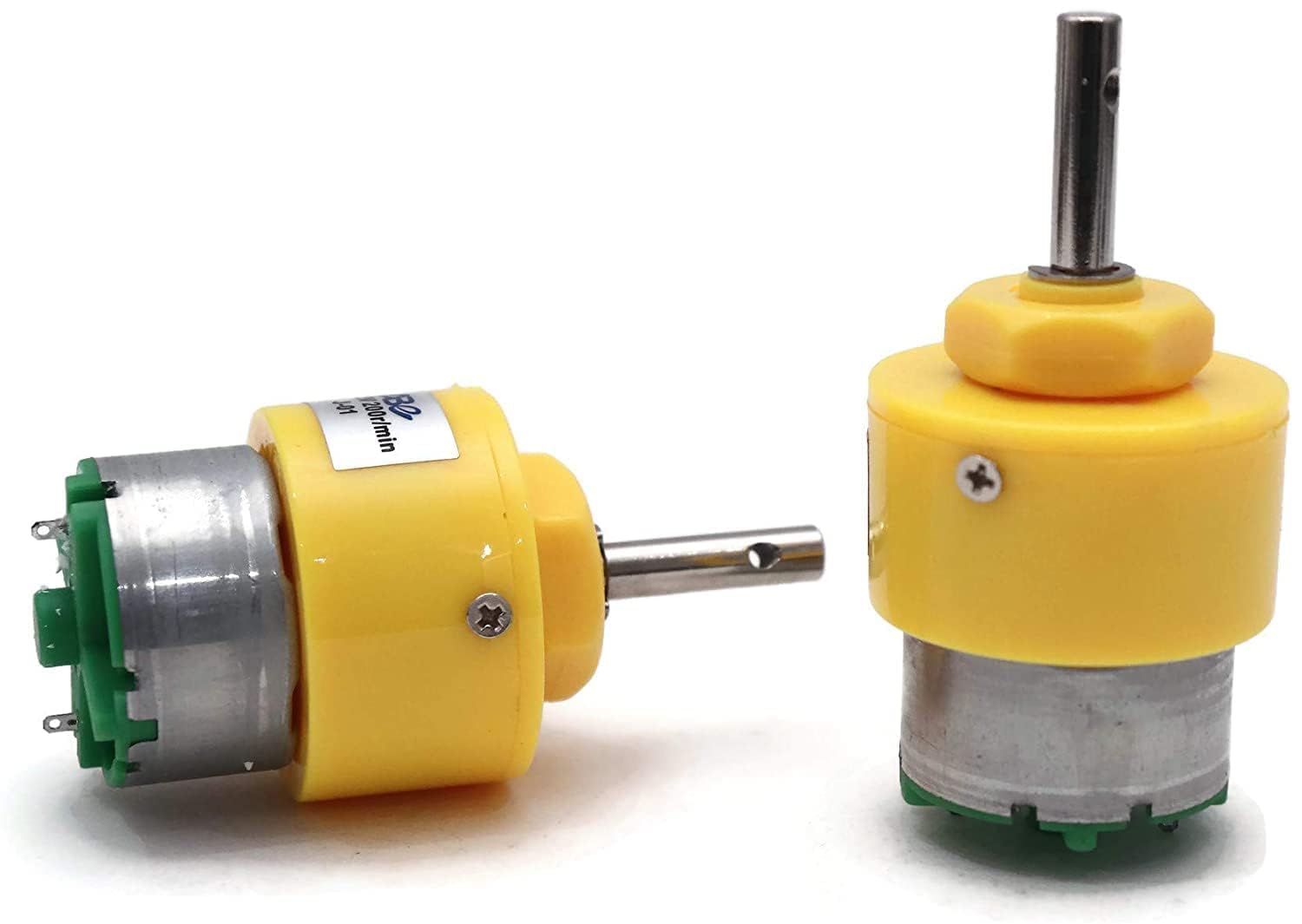

Selecting the right DC gear motor is troublesome for the robotics project. However, This DC geared motor can be used for heavy-duty applications, robotics, or in any industrial or educational applications. It has a wide range of features for obtaining the optimal performance characteristics. It is very easy to use and does not need expensive motor control circuitry. This DC Motor has 100 RPM and the voltage rating of 12Volts that is a useful specification to make this geared motor as a retro fitable in all-terrain robots and a variety of robotic projects. The motors shaft has a 3 mm threaded drill hole in the middle, which is very useful for mechanical assembly.

Geared motor features and specifications:

Gear Type: Metal

RPM: 100

Working Voltage (VDC): 7-12V (12V recommended and maximum)

Torque (kg - cm): 5

Load Current Max: 300mA No-Load Current (mA): 60mA Geared Motor

Applications: Robotics Controlling Wheels, Industrial application Educational projects Different motor related applications
