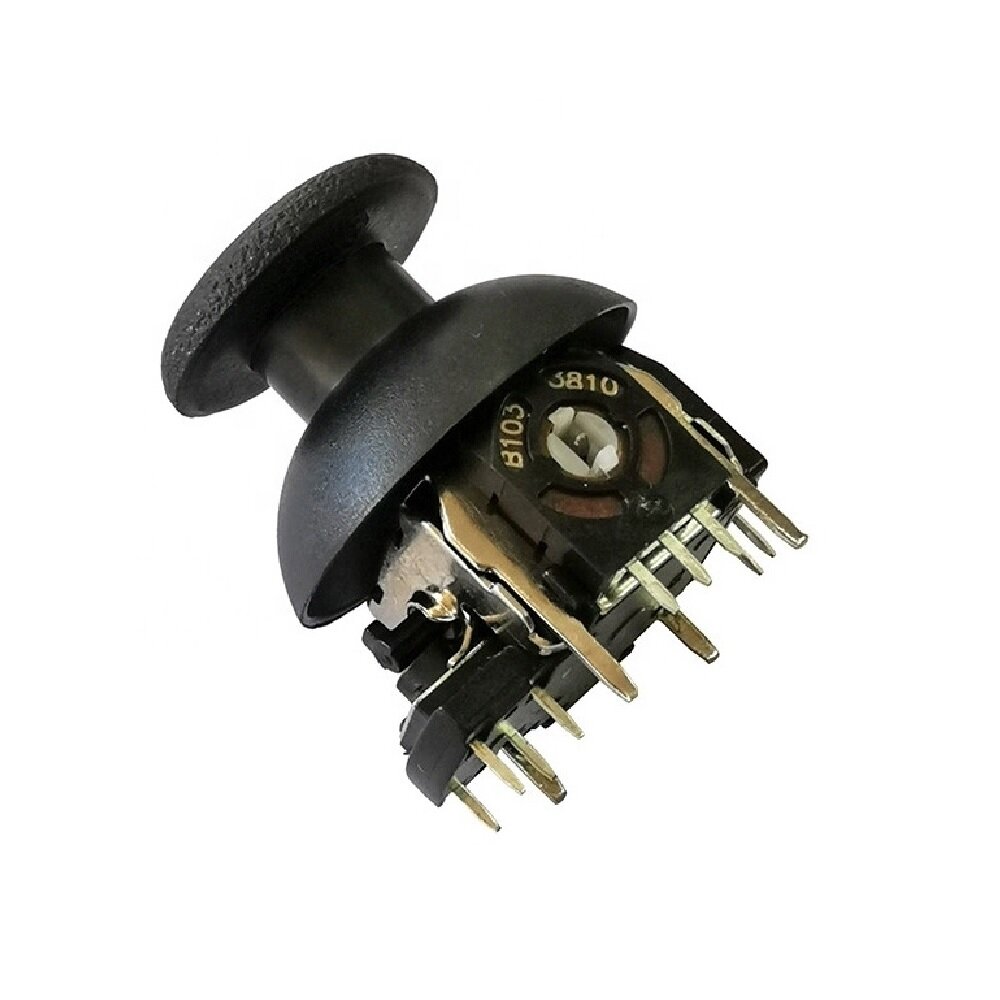

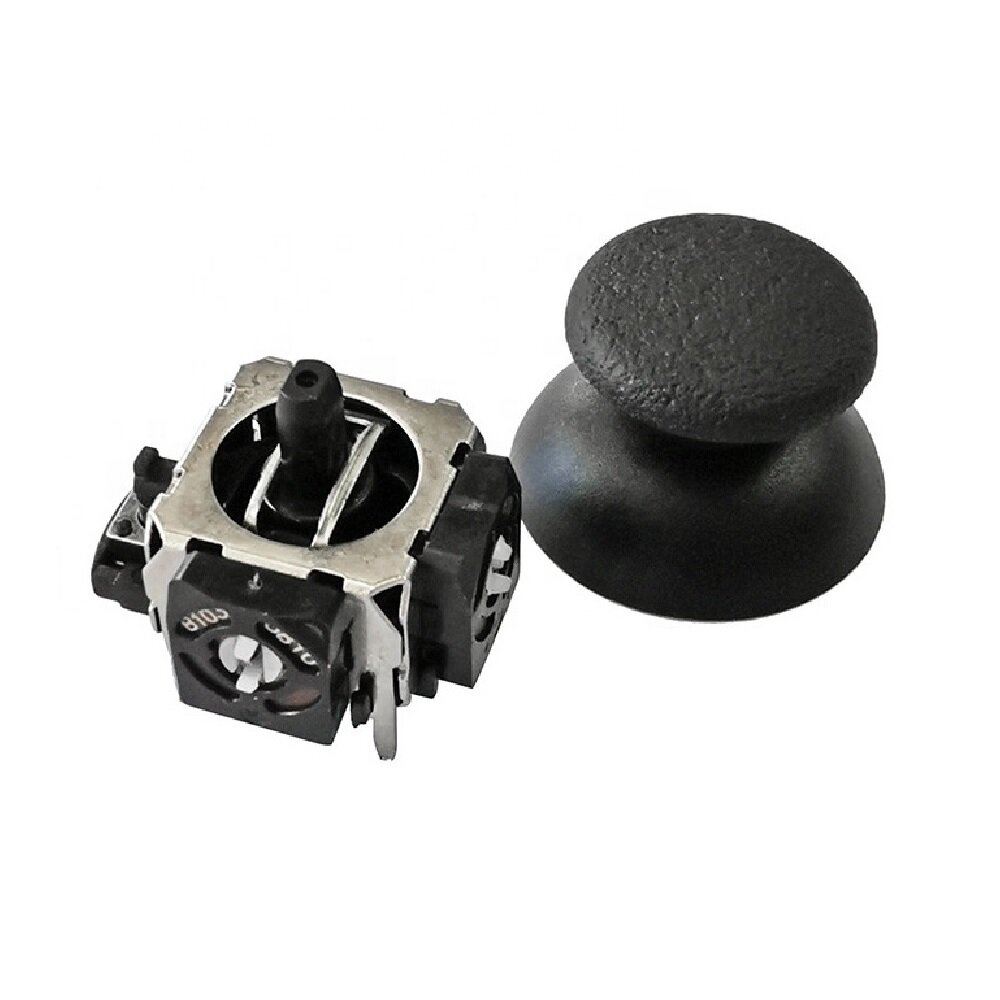

This is a joystick very similar to the ‘analog’ joysticks on PS2 (PlayStation 2) controllers. Directional movements are simply two potentiometers - one for each axis. Pots are ~10k each. This joystick also has a select button that is actuated when the joystick is pressed down. The optional momentary switch is operational at all rotations, Long life, 1 million cycles Two analog outputs, and one digital output. X, and Y-axis output of the two potentiometers can be read out through the a to d converter. Quality rocker, long life, stable performance 2.54mm pin interface and leads Long service life and stable performance with standard interface and electronic building blocks, it is widely used in DIY projects

PS2 Game Joystick Controller Module for Arduino which is very similar to the 'analog' joystick on PS2 (PlayStation 2) controllers. The X and Y axes are two 10k potentiometers which control 2D movement by generating analog signals. When the module is in working mode, it will output two analog values, representing two directions. This module uses 5V power supply, and value when read through analog input would be about 2.5V, value will increase with joy stick movement and will go up till maxium 5V; the value will decrease when the joystick is moved in other direction till 0V. This PS2 game biaxial rocker sensor module by using original of high-quality metal PS2 rocker potentiometer has 2 axis (X, Y) analog output, digital output (Z) 1 road button. Cooperate with the Arduino sensor extension board can make interactive work such as remote control.In addition, our products in order to make customers more easily with the arduino extension standard interface, such as on the design of X, Y, Z axis of the circuit are separate derivation, users can use 3 pin arduino private sidings true plug to extend board to use.Is very convenient.

Features:

• Breakout module for Playstation2 analog joystick

• 5 pins on board: VCC, GND, X, Y and Button. Connect the module with 5V power suppy with VCC and GND, you can read out the joystick status by X,Y and button pins

• When using the 5V power supply, the default analog output for X,Y is 2.5V. With the direction of the arrow, the voltage up to 5V, and the opposite direction down to 0V.

• Simply connect to two analog inputs, the robot is at your commands with X,Y control.

• It also has a switch that is connected to a digital pin &bull
