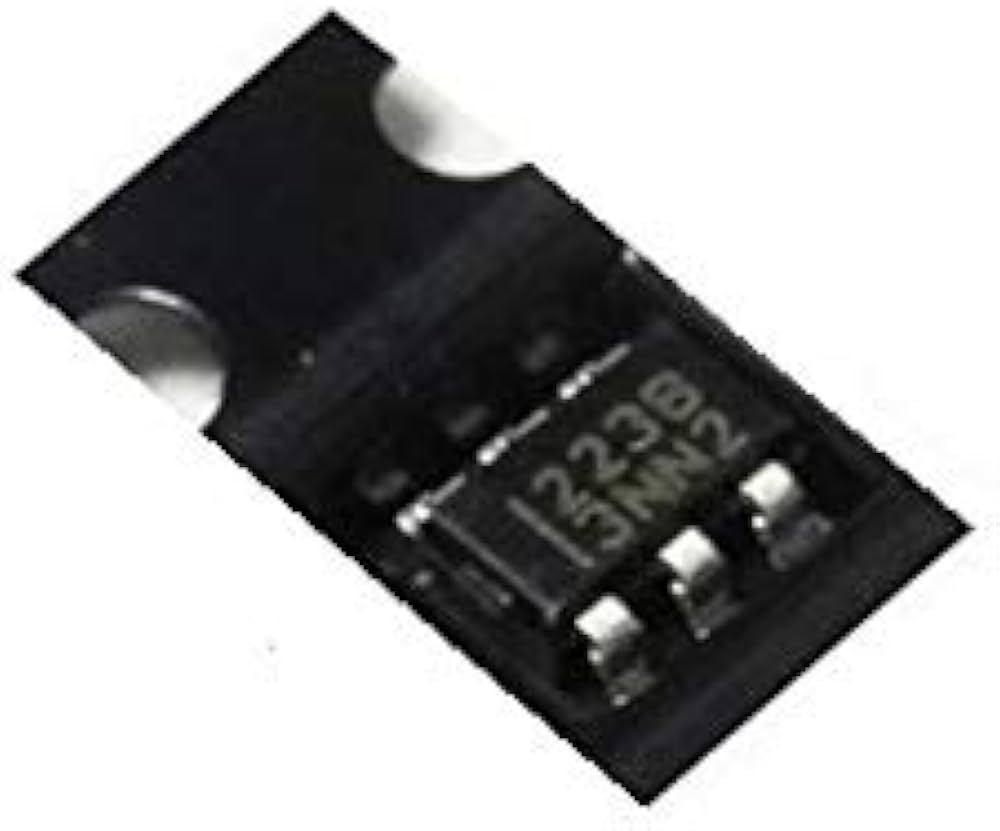

TTP223 Touch Sensor IC Single Channel Capacitive Touch Detection Chip-SOT23-6 Package TTP223 Touch Sensor IC Single Channel Capacitive Touch Detection Chip-SOT23-6 Package The TTP223 is a touchpad detector IC that offers 1 touch key. Featured by Sharvi Electronics The touching detection IC is designed for replacing the traditional direct button key with diverse pad sizes. Low power consumption and wide operating voltage are the contact key features for DC or AC applications.

Features/Specs:

• Operating voltage 2.0V~5.5V
• Operating current @VDD=3V, no-load, SLRFTB=1 At low power mode typical 1.5uA, maximum 3.0uA
  At fast mode typical 3.5uA, maximum 7.0uA @VDD=3V, no-load, SLRFTB=0 At low power mode typical 2.0uA, maximum 4.0uA At fast mode typical 6.5uA, maximum 13.0uA
• The response time max about 60mS at fast mode, 220mS at low power mode @VDD=3V
• Sensitivity can adjust by the capacitance(0~50pF) outside
• Have two kinds of sampling length by pad option(SLRFTB pin)
• Stable touching detection of the human body for replacing traditional direct switch key

  Application:

  • Wide consumer products
  • Waterproofed electric products
  • Button key replacement

  Package Includes:

  • 1 X TTP223 Touch Sensor IC Single Channel Capacitive Touch Detection Chip-SOT23-6 Package
