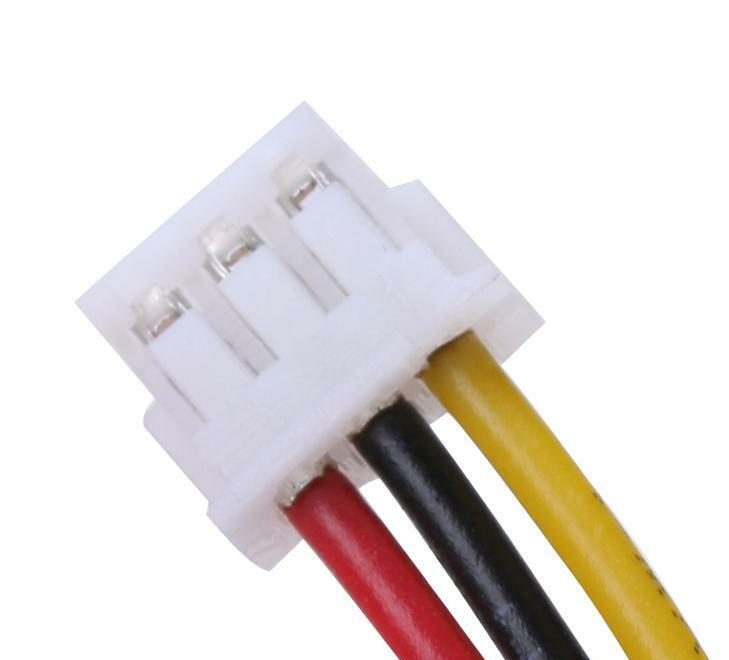

The 1.5A/AW-1.5mm-3 pin Female Housing Connector with 300mm Wire (28 AWG) ensures secure electrical connections with its 1A AC/DC current and 50V AC/DC voltage ratings. Featuring low contact resistance (20mΩ max) and high insulation resistance (500MΩ min), it withstands voltage fluctuations (500V AC/minute) across a wide temperature range (-40°C to +85°C), making it suitable for various applications.

Features:

1. Secure Electrical Connections: Ensures reliable connectivity for various applications.
2. Suitable Current and Voltage Rating: Rated for 1A AC/DC current and 50V AC/DC voltage for versatile use.
3. Low Contact Resistance: Provides efficient electrical conductivity with a maximum of 20mΩ.
4. High Insulation: Offers excellent insulation resistance of 500MΩ minimum.
5. Voltage Endurance: Withstands voltage fluctuations with a withstanding voltage of 500V AC/minute.
6. Wide Temperature Range: Operates effectively in temperatures ranging from -40°C to +85°C.

   Package Includes:

   1 x 1.5A/AW-1.5mm-3 pin Female Housing Connector with 300mm Wire(28 AWG)
