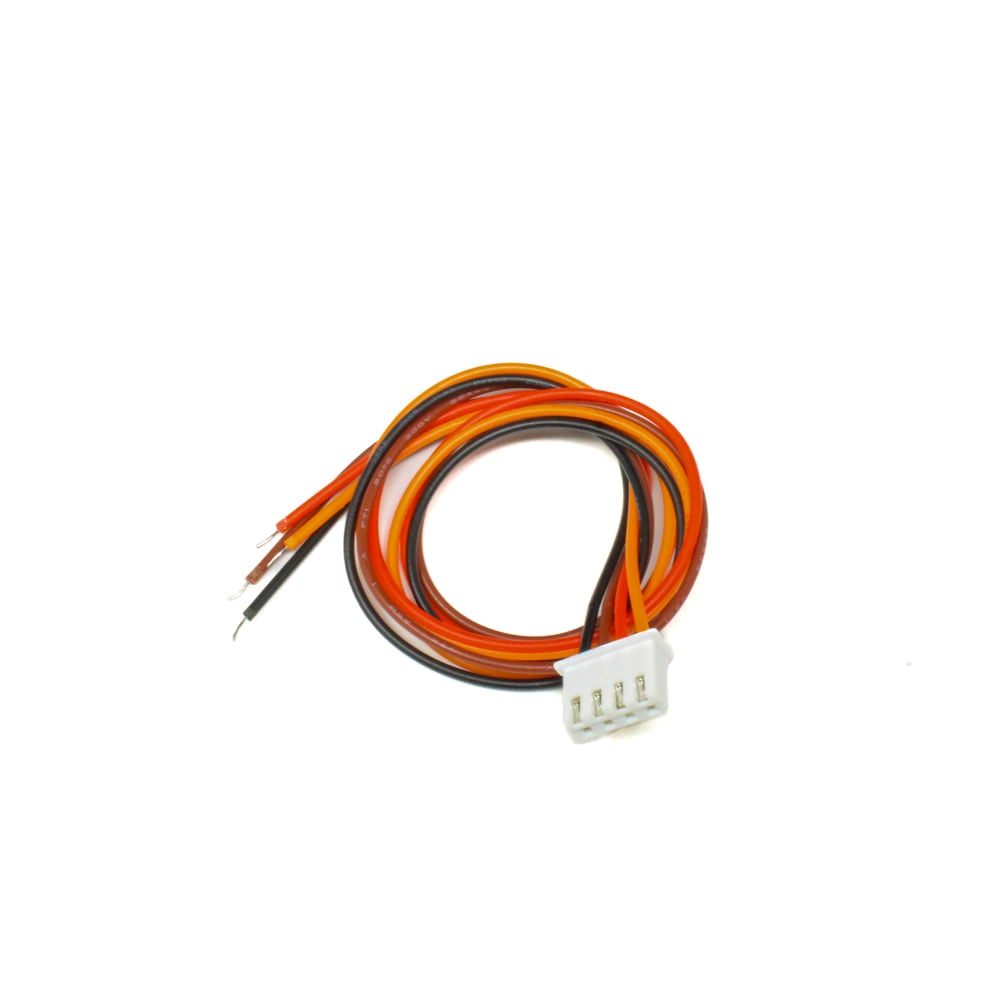

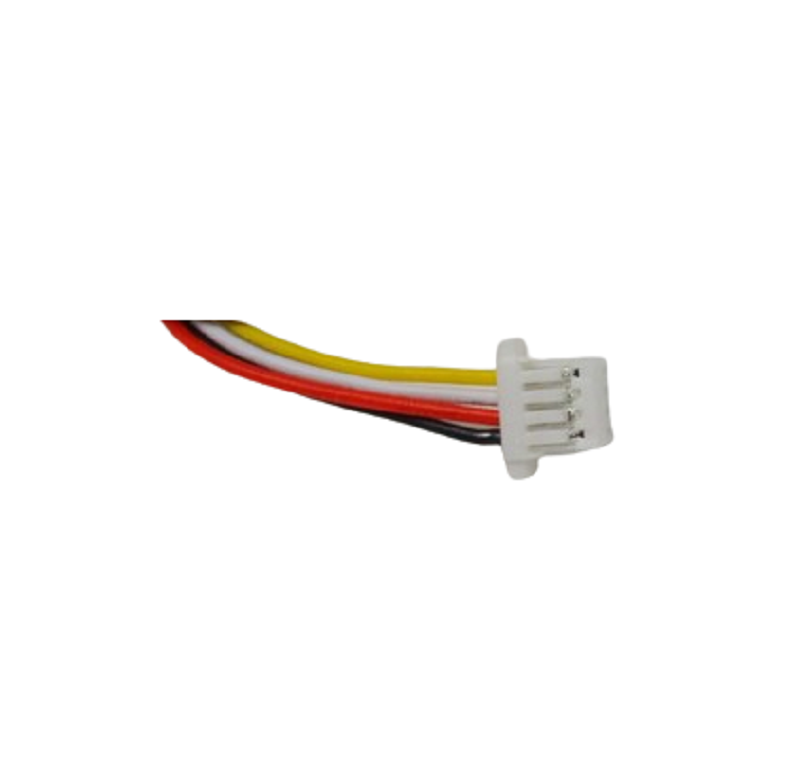

The WD100EW-05 is a 4-pin Female Housing Connector with a 1mm pitch. It features a 300mm wire with 30 AWG gauge. The insulation impedance is rated at 10 Mohm DC 300V, ensuring reliable signal transmission. This connector is suitable for applications requiring a compact and reliable electrical connection with a specified insulation impedance.

Features:

1. Connector Type: Female Housing Connector
2. Pitch: 1mm
3. Number of Pins: 4
4. Wire Length: 300mm
5. Wire Gauge: 30 AWG
6. Insulation Impedance: 10 Mohm DC 300V

   Package Includes:

   1 x JST-SH-1MM-4 pin Female Housing Connector with 300mm Wire(30 AWG)
